Nakshe

Send the nakshe.
Get the price.

ನಕ್ಷೆ ಕಳಿಸಿ, ಬೆಲೆ ಪಡೆಯಿರಿ

A contractor sends a pencil sketch and a Kannada voice note to the hardware shop on WhatsApp. A priced quote with a Paytm advance link comes back in under a minute, and the owner approves it with one tap.

Try the prototype Read it on GitHub
Clickable prototype with sample data. The quantity rules are real.

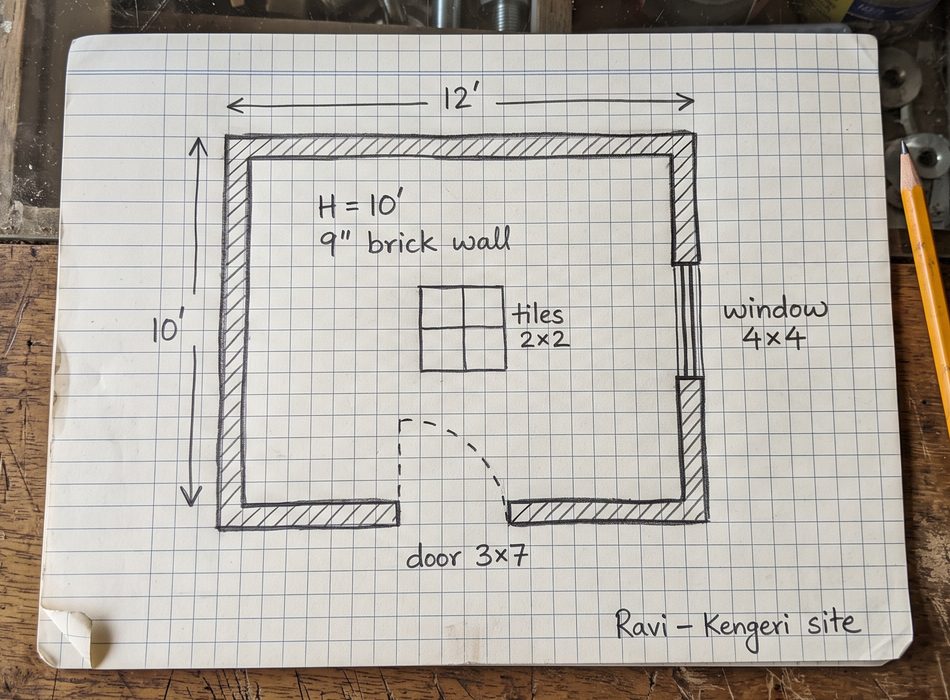

Pencil sketch of a 12 by 10 ft room on graph paper, lying on a shop counter
Sri Lakshmi Hardware & Cements
Estimate Q-0412 for Ravi K., Kengeri site
Bricks4,860₹43,740
Cement OPC 5319 bags₹7,600
M-sand5.5 t₹7,150
Tiles 2×29 boxes₹7,020
Tile adhesive3 bags₹1,350
Total₹66,860
₹13,372 advance via Paytm

Try it. You play both sides.

Confirm the plan as Ravi on WhatsApp, approve the quote as the shop owner, then pay the advance. Change the room in “What the AI read” and every number recalculates.

1Sketch sent 2Plan confirmed 3Quote approved 4Advance paid
10:425G 82%
SL
Sri Lakshmi Hardware & CementsBusiness account · replies instantly
Message
Nakshe · owner console

Ravi K. · Kengeri site

Contractor · sketch and Kannada voice note

Waiting for Ravi to confirm
ItemHow we countedStockQtyAmount
Total incl. GST
Your margin

The story in 90 seconds

One evening in Kengeri: how Ravi's quote takes until the next day by hand, and how it gets done before 7:41 PM with Nakshe.

How the numbers hold up

A wrong quantity costs the shop money or the job. So the AI never does the maths.

  1. The AI only readsGemini turns the sketch into dimensions and Sarvam turns the voice note into text. Neither one calculates.
  2. The contractor confirmsThe plan is read back on WhatsApp before any price is shown. Anything missing, like a roof slab, is asked for.
  3. Rules do the countingIS 1200 take-off rules, unit-tested on known rooms. Every line shows how it was counted.
  4. The owner approvesNothing leaves the shop without one tap, and the owner can edit any rate first.

Ravi's room, worked out

12 × 10 ft · 10 ft walls · 9-inch brick · 1 door · 1 window
Wall47 ft centre-line × 10 ft − door − window433 sq ft Volume433 sq ft × 0.23 m thick9.25 m³ Bricks9.25 m³ × 500 per m³ + 5% breakage4,860 Cementmortar 1:6 (11.4) + plaster 12 mm (7.4)19 bags M-sand3.41 m³ × 1.6 t per m³5.5 t Tiles120 sq ft + 8% ÷ 15.5 sq ft per box9 boxes Adhesive120 sq ft ÷ 45 sq ft per bag3 bags Totalat Bengaluru rates, Sep 2026, incl. GST₹66,860
The owner sees every one of these lines.

Built with

Five of the six are Hack Sprint partner tools.
